Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | Q14P1CXXVG24E |
| Color | Green |
| Current Rating | 16 to 20 mA |
| IP Rating | IP67 |
| Lamp Size | 10 mm |
| Lamp Type | LED |
| Length | 1.85" (47mm) |
| Life | 100000 hrs. |
| Mounting Hole Size | 0.55 in. |
| Mounting Type | Threaded |
| Shop By | Factory Choice |
| Standards | UL |
| Supply Voltage | 24 VAC/VDC |
| Temperature Rating | -40 to 85 C |
| Termination | Solder |
| Type | General Purpose |
| UPC Code | 5056070958678 |
| Warranty | 3 Year Warranty |
Overview

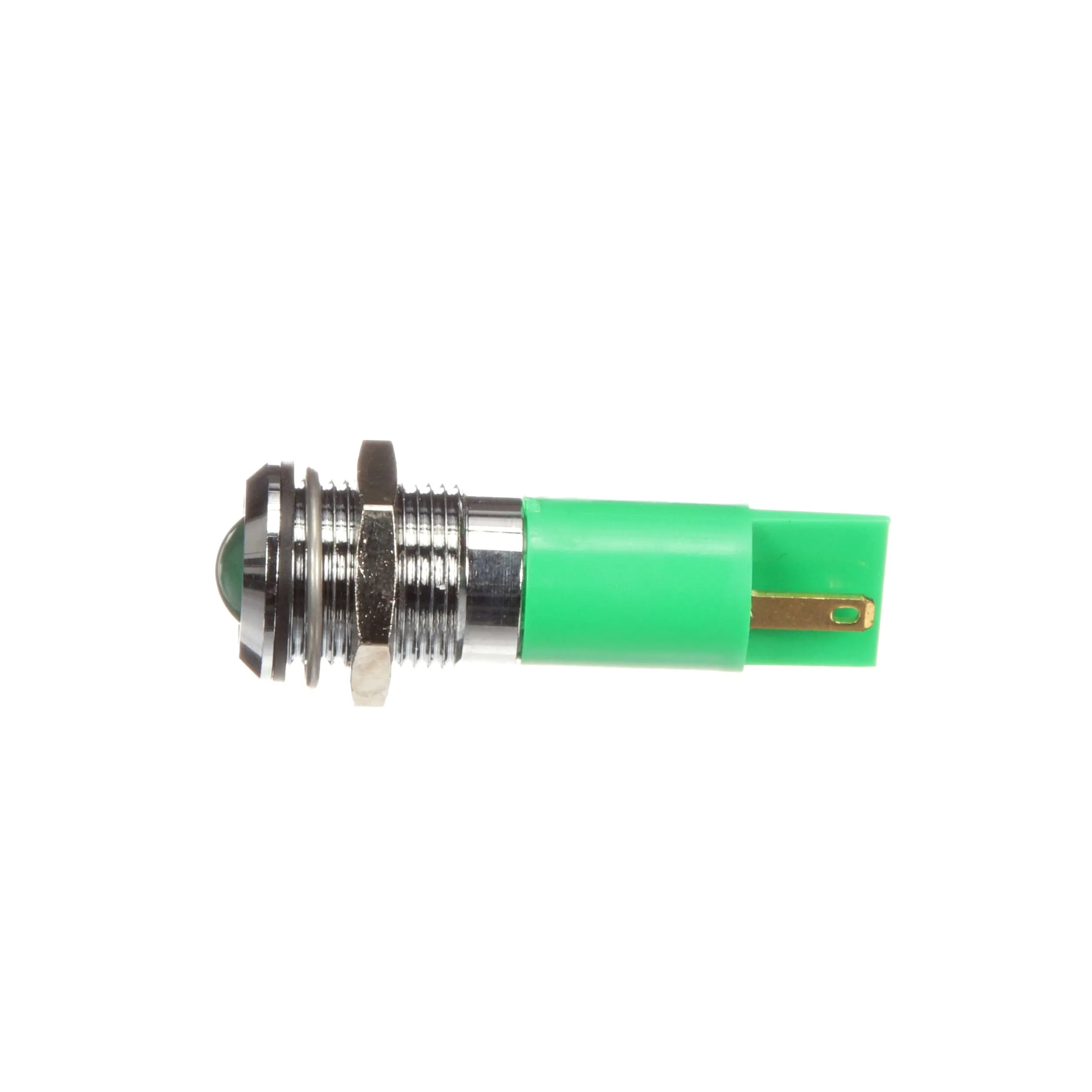

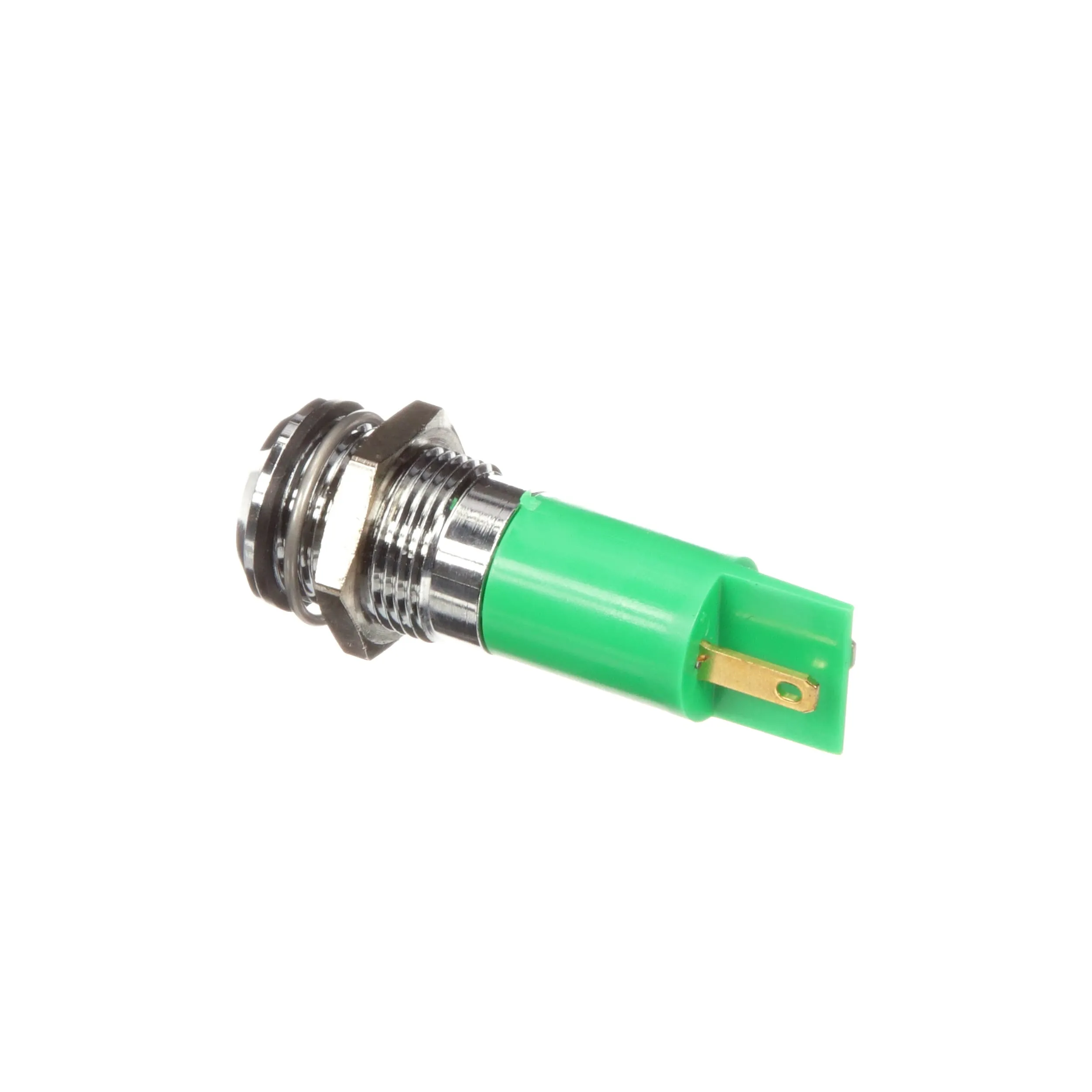

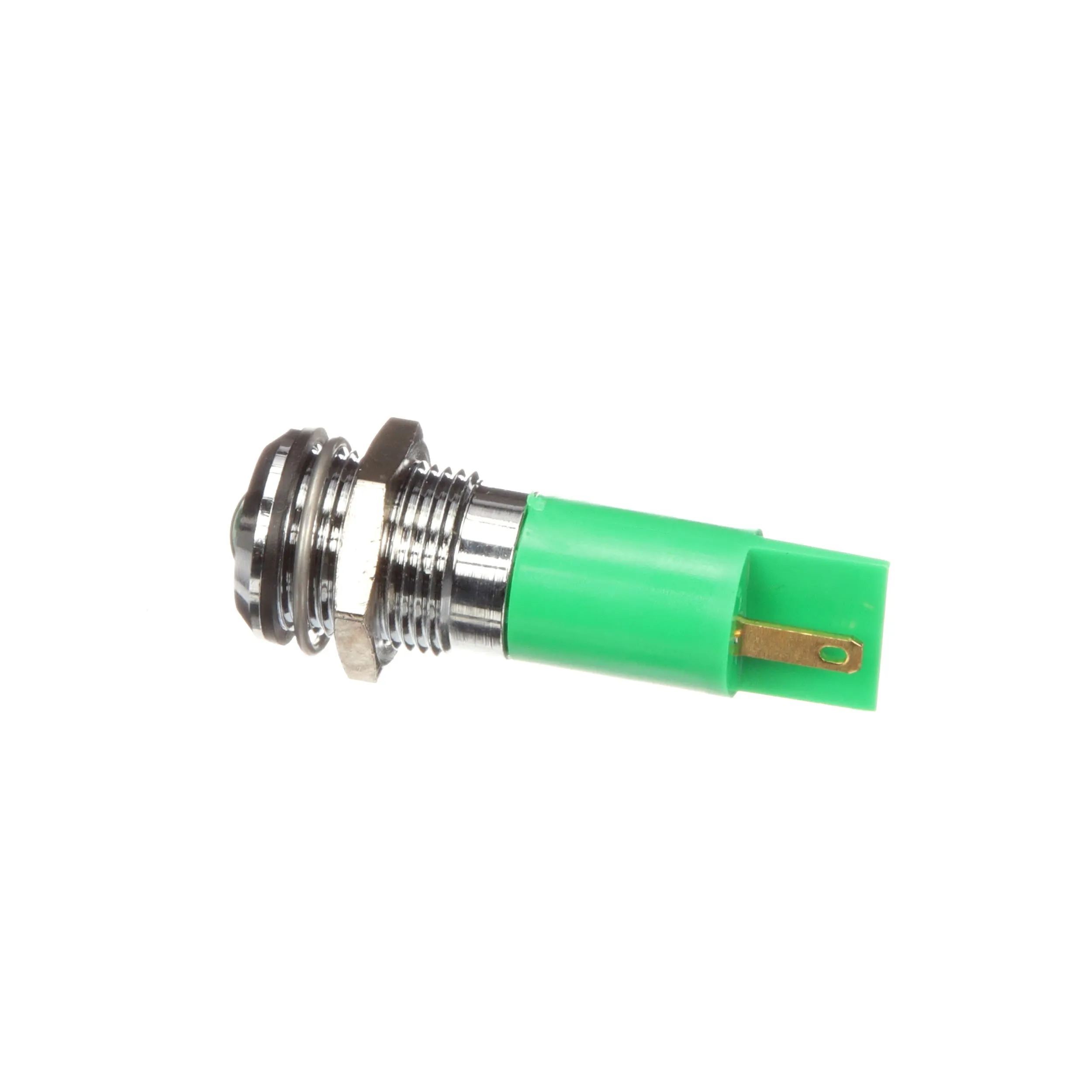

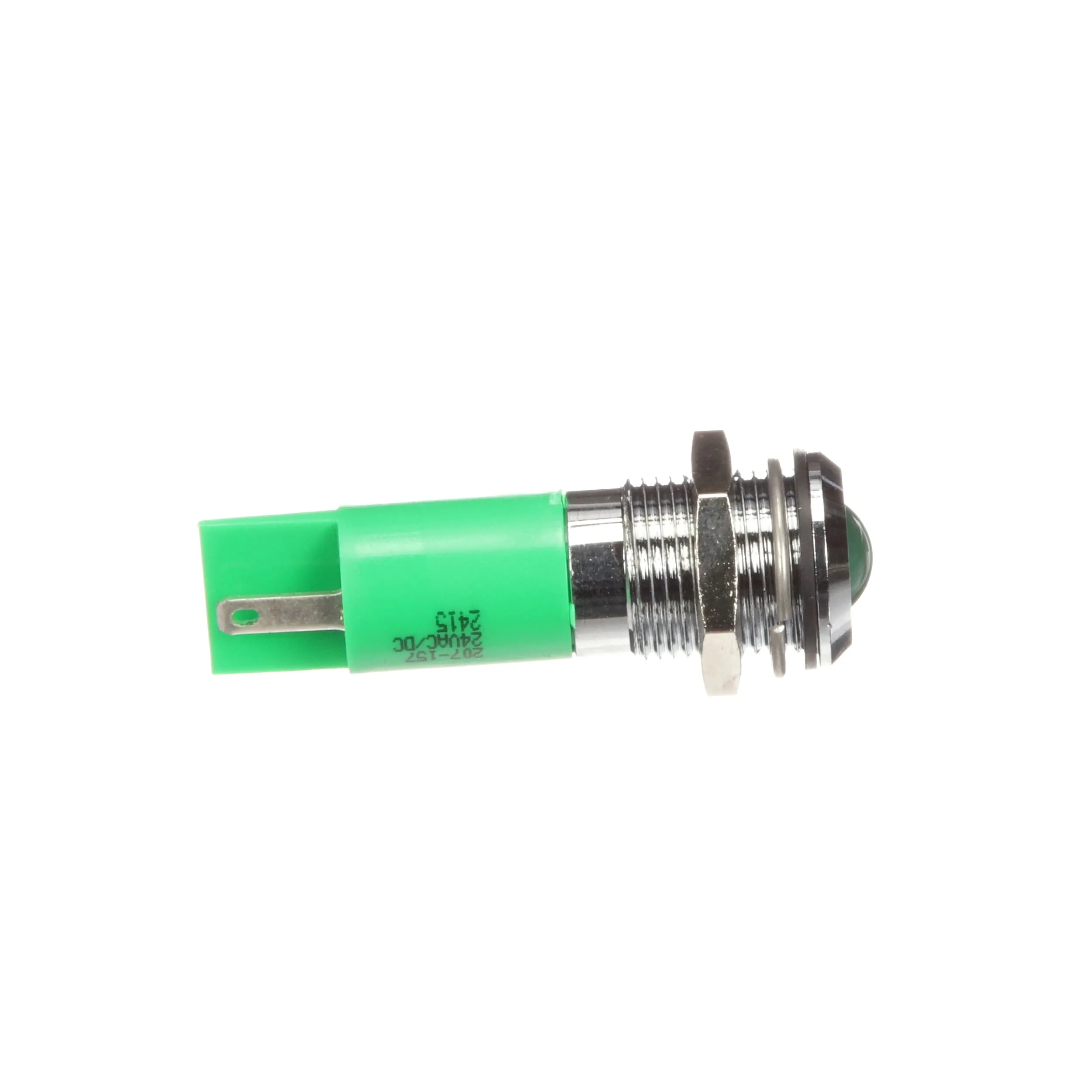

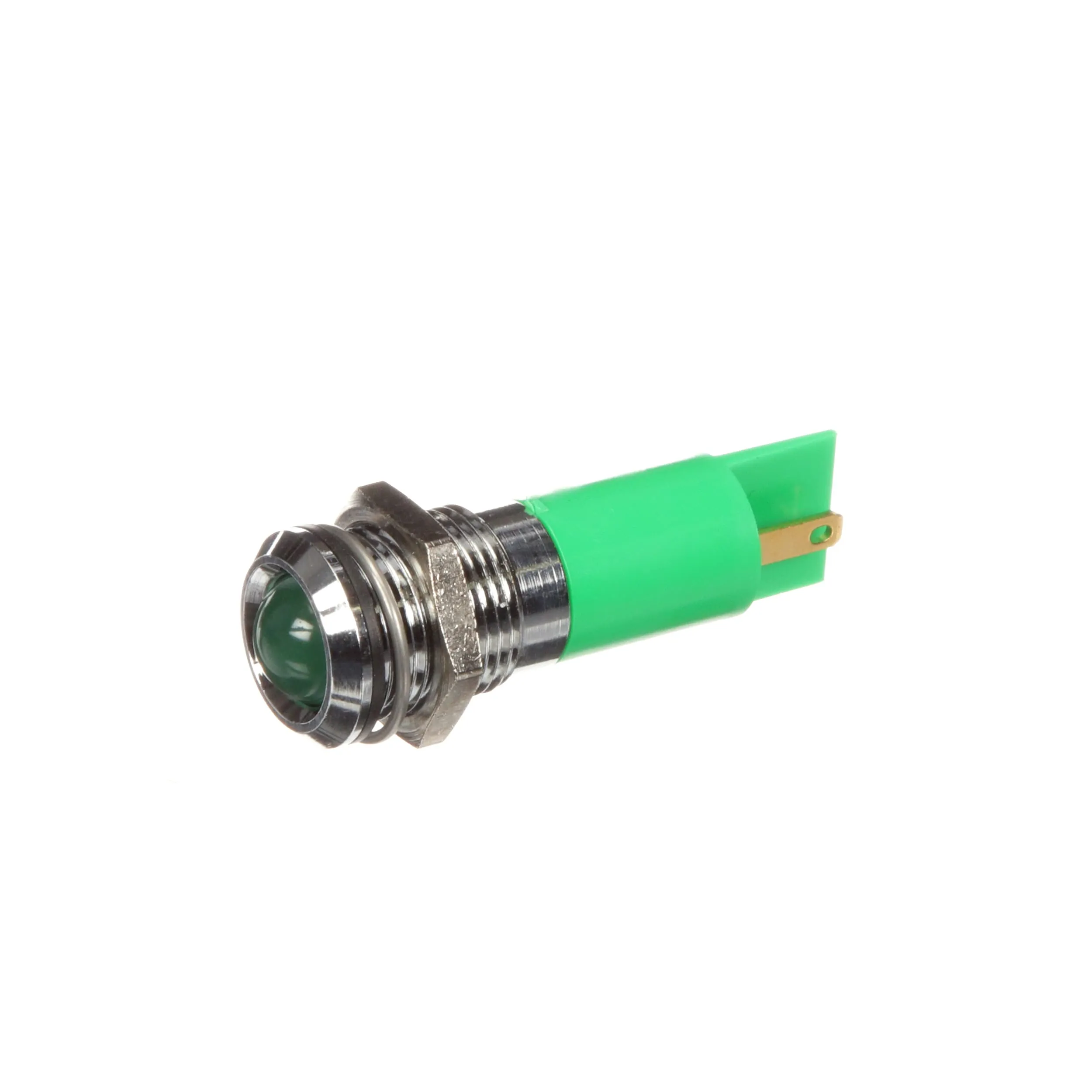

RS Pro 165321 Series — 14 mm Prominent Ultra-Bright LED Panel Mount Indicators:
RS Pro prominent indicator with 14 mm mounting hole features green sunlight visibility LEDs for panel mount applications. With an IP67 rating, it is suitable for most environments including outdoor applications. This indicator accommodates a lamp size of 10 mm and offers faston, solder lug termination. It has a voltage rating of 24 V dc. The indicator has a wide operating temperature range of -40 to 85°C, further increasing the potential applications they may be used for. The 10 mm LED requires a 14 mm panel cut-out and is supplied with a fixing nut and spring washer. It offers a wide selection of voltage ratings, bezel finishes and bezel styles.
Features:
