| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | Q12P1CXXG24AE |
| Color | Green |
| Current Rating | 20 mA |
| IP Rating | IP67 |
| Lamp Size | 8 mm |
| Lamp Type | LED |
| Length | 2.204" (56mm) |
| Life | 100000 hrs. |
| Mounting Hole Size | 0.47 in. |
| Mounting Type | Threaded |
| Shop By | Factory Choice |
| Standards | UL |
| Supply Voltage | 24 VAC/VDC |
| Temperature Rating | -40 to 85 C |
| Termination | Solder |
| Type | General Purpose |
| UPC Code | 5056070960152 |
| Warranty | 3 Year Warranty |
Overview

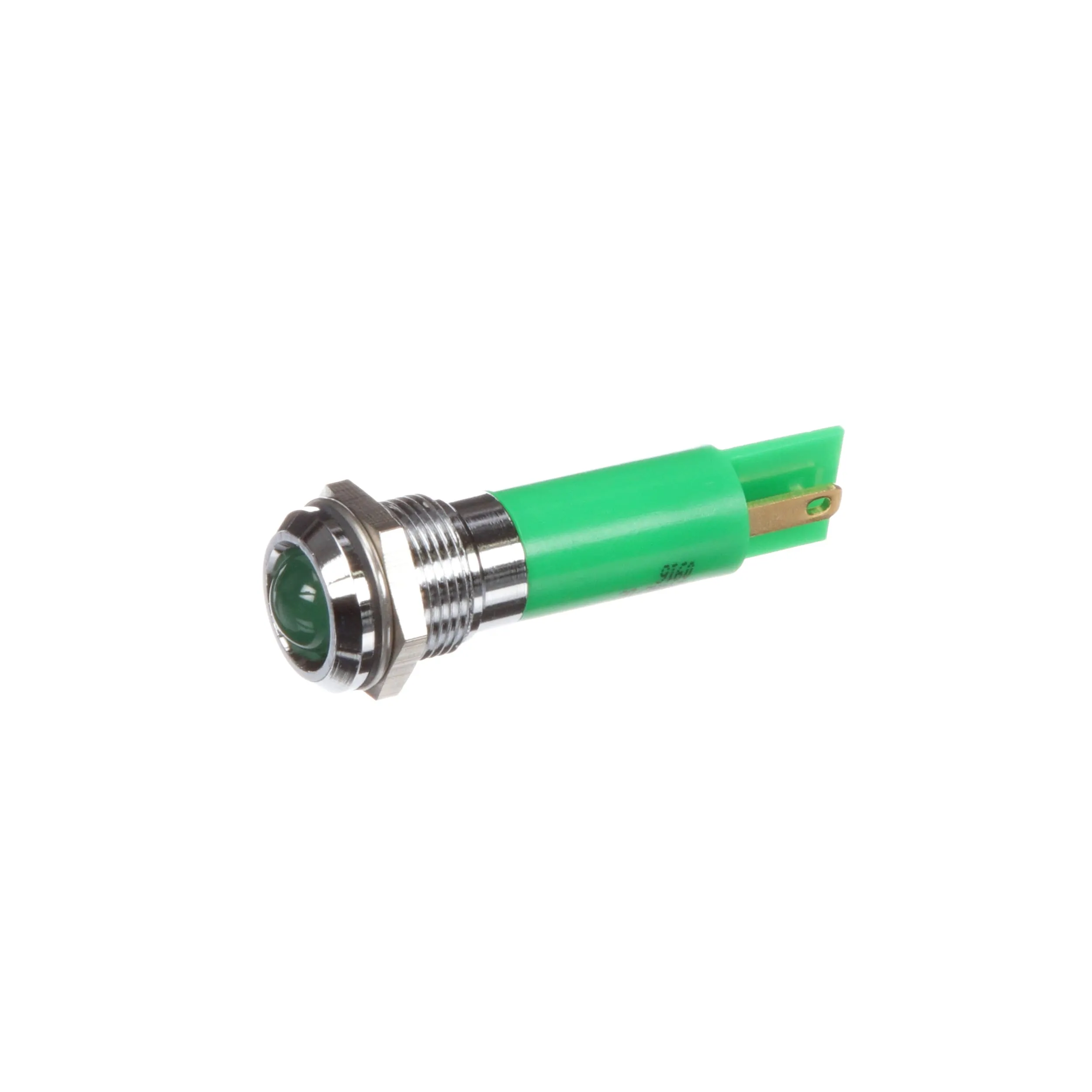

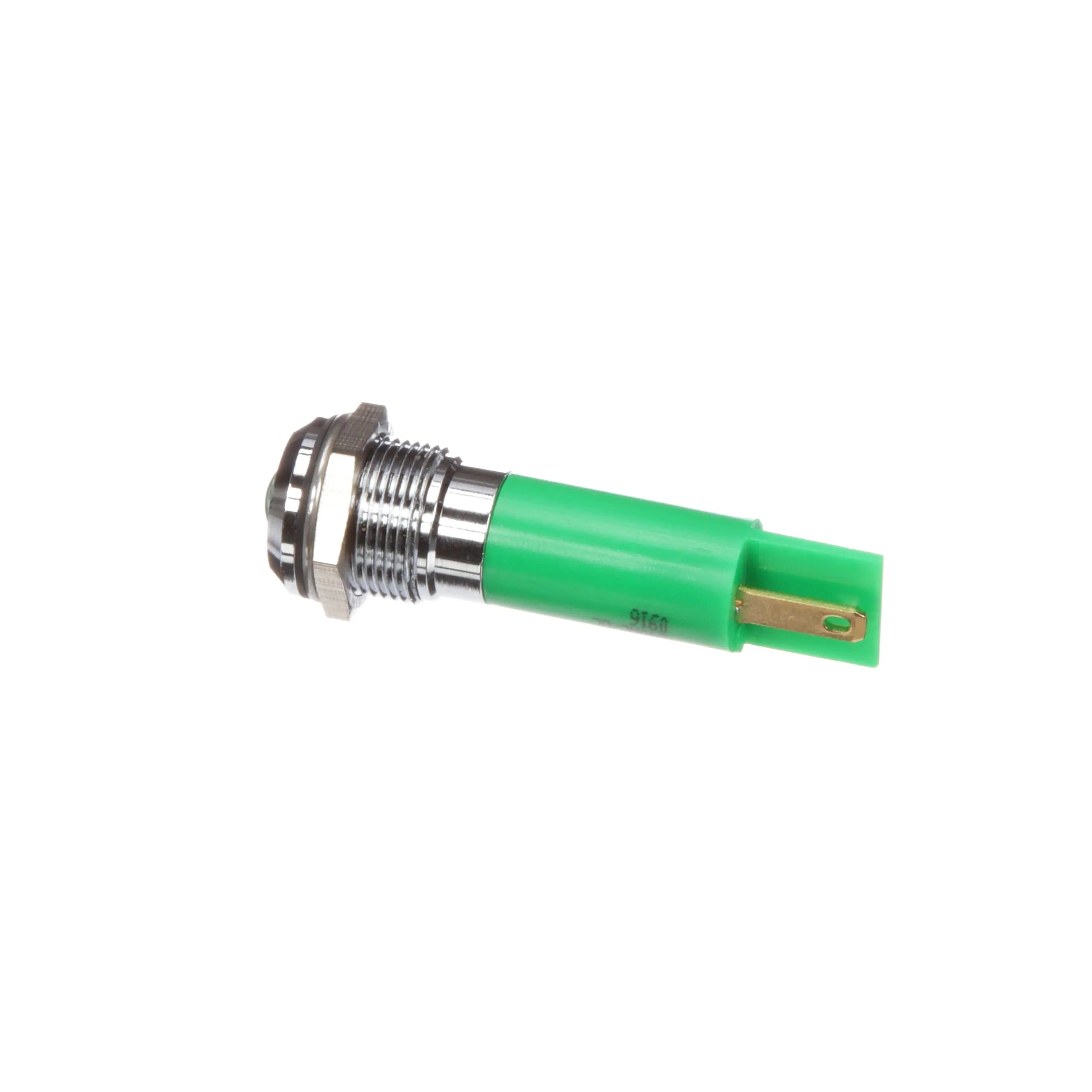

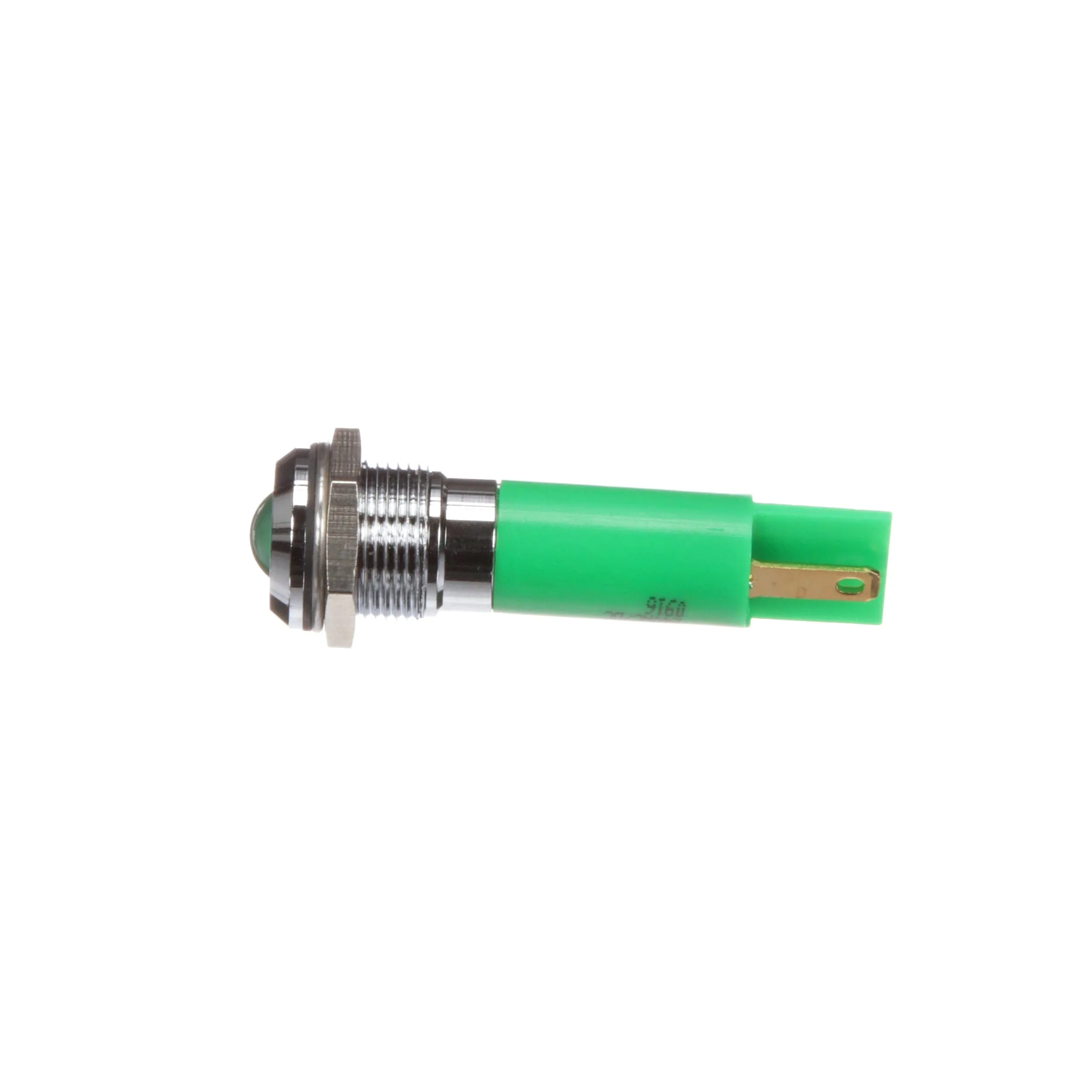

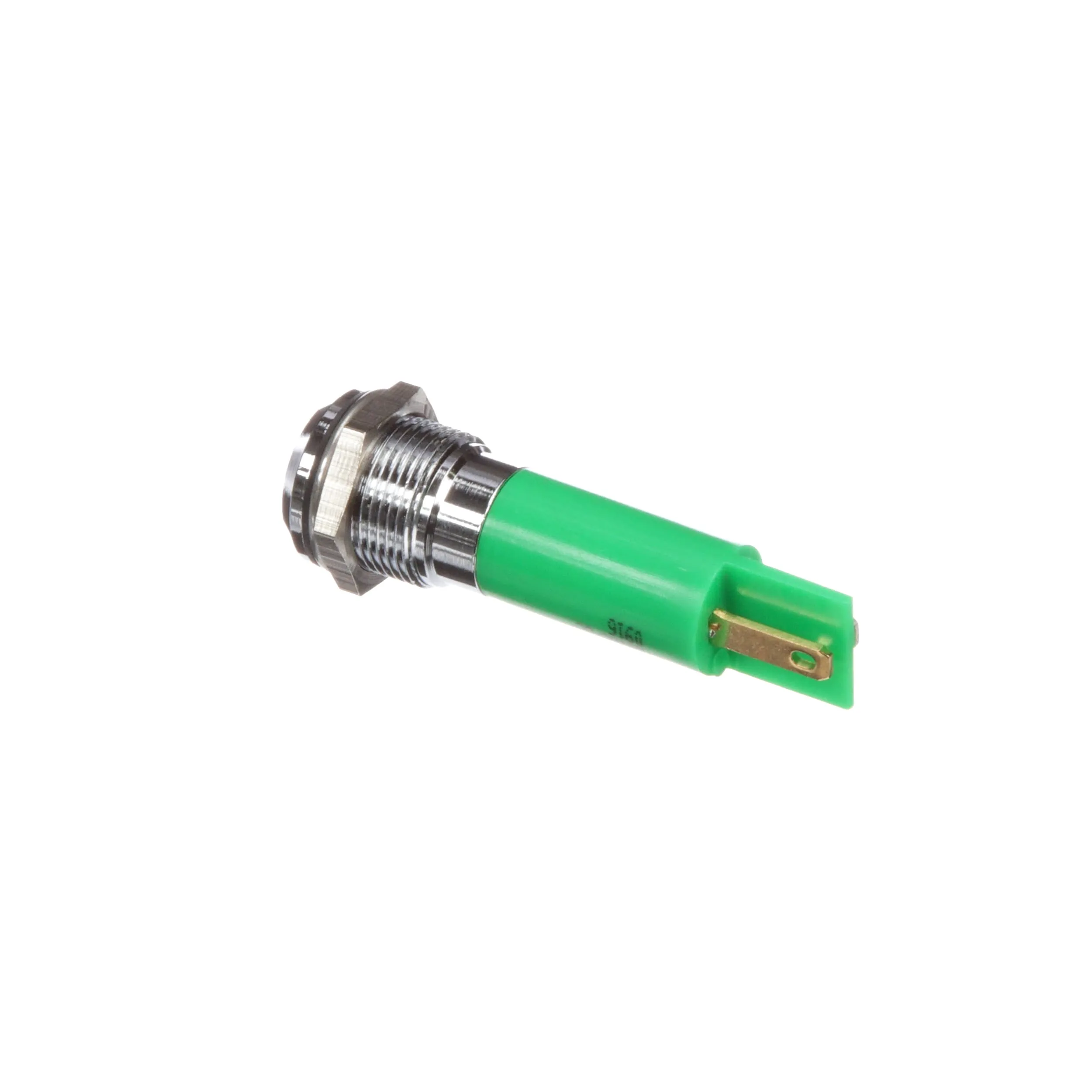

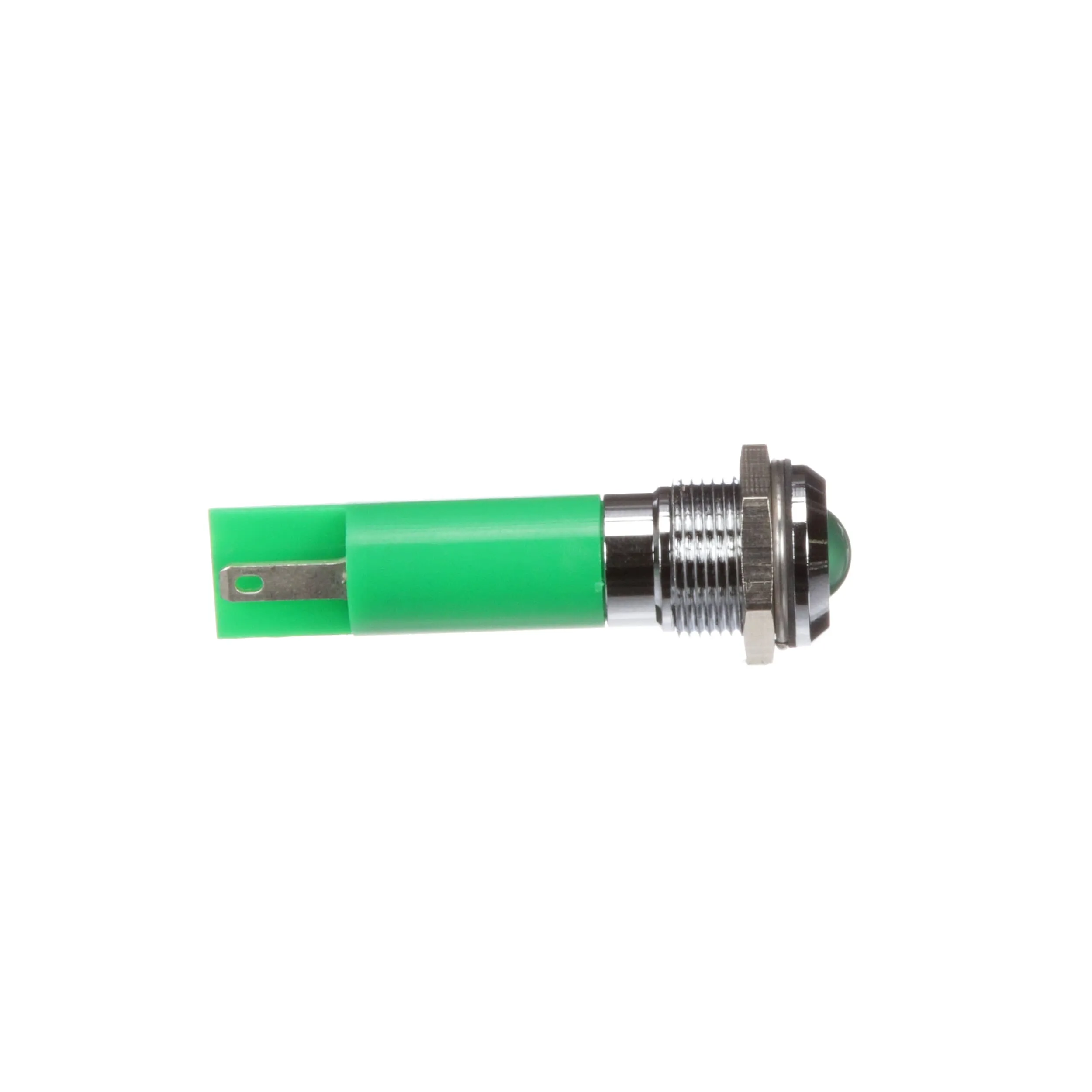

RS Pro 165238 Series — 12 mm PMT Prominent LED Panel Mount Indicators:
These LED indicators feature solder lug terminals, a chrome bezel and are sealed to an ingress protection of IP67. Ensuring the suitability for use in harsh outdoor environments. RS Pro LED indicators give a high level of brightness and a long life.
RS Pro prominent indicator with 12 mm mounting hole features yellow LEDs for panel mount applications. With an IP67 rating, it is suitable for most environments including outdoor applications. This indicator accommodates a lamp size of 8 mm and offers faston, solder lug termination. It has a voltage rating of 130 V ac. The indicator has a wide operating temperature range of -40 to 85°C, further increasing the potential applications they may be used for. The 8 mm LED requires a 12 mm panel cut-out and is supplied with a fixing nut and spring washer. It offers a wide selection of voltage ratings, bezel finishes and bezel styles.
Features:
