Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | Q8R1BZZRYG24 |
| Color | Red, Yellow, Green |
| Current Rating | 20 mA |
| Lamp Size | 5 mm |
| Lamp Type | LED |
| Length | 1.456" (37mm) |
| Life | 100000 hrs. |
| Mounting Hole Size | 0.315 in. |
| Mounting Type | Threaded |
| Shop By | Factory Choice |
| Standards | UL |
| Supply Voltage | 24 VDC |
| Temperature Rating | -40 to 85 C |
| Termination | Solder |
| Type | General Purpose |
| UPC Code | 5056070959507 |
| Warranty | 3 Year Warranty |
Overview

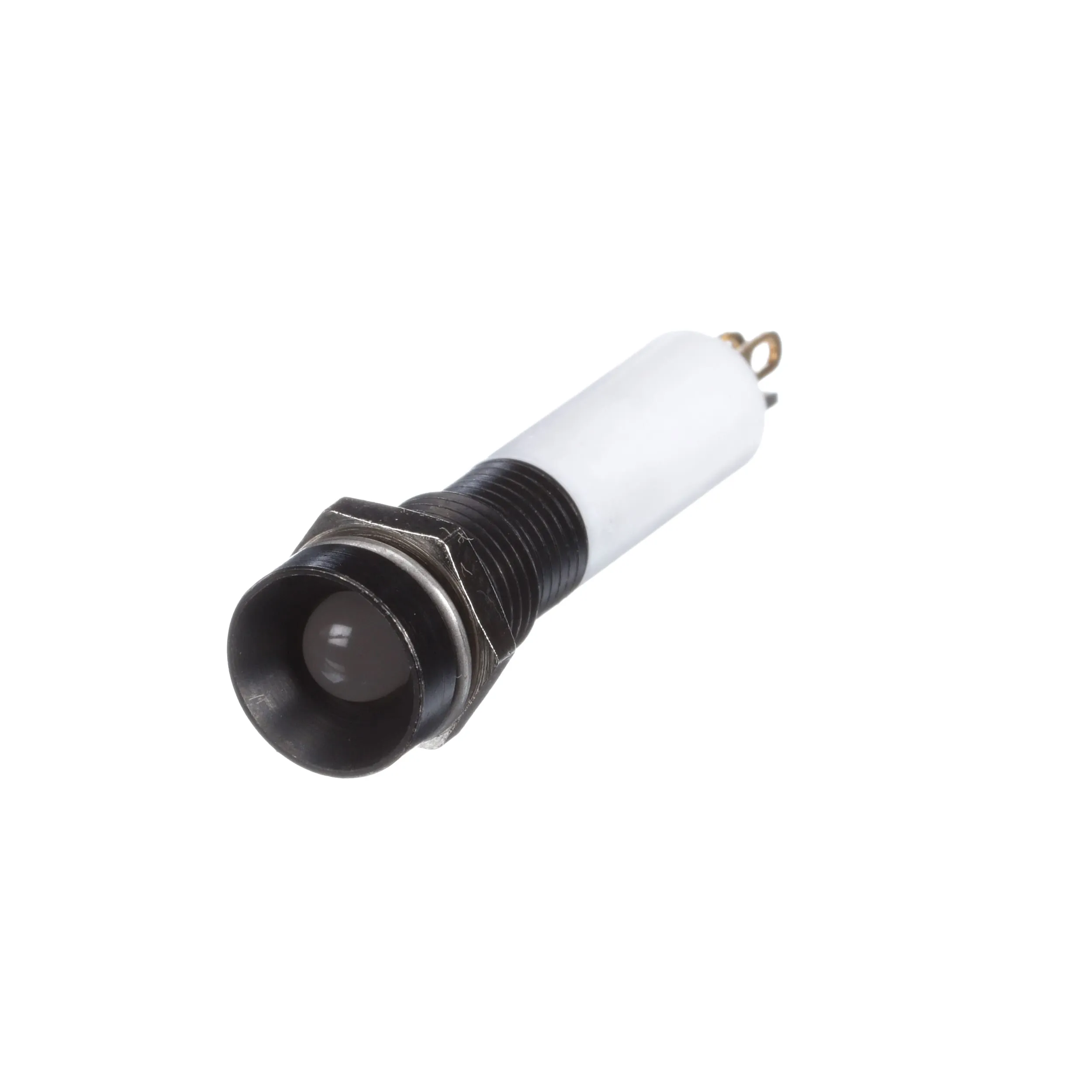

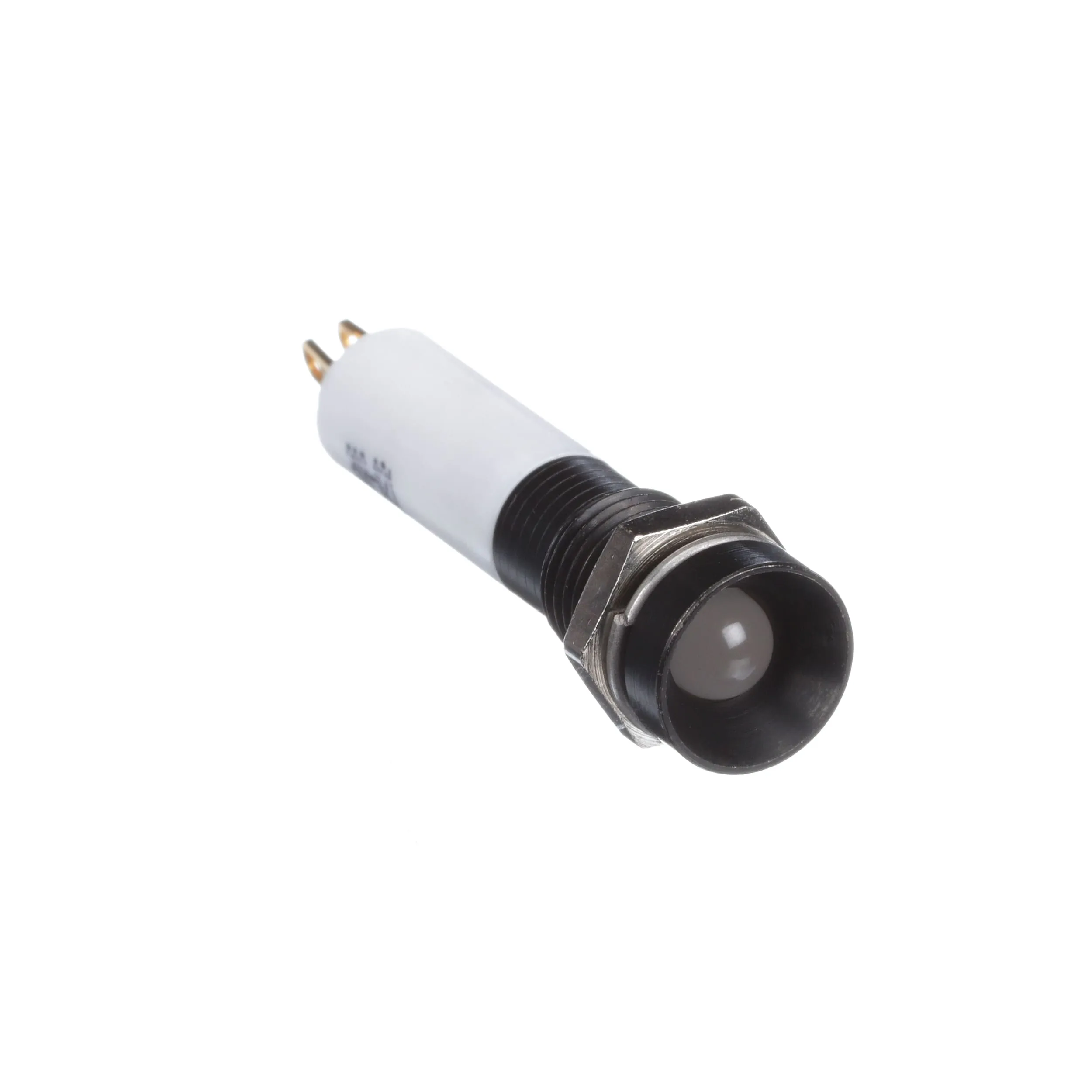

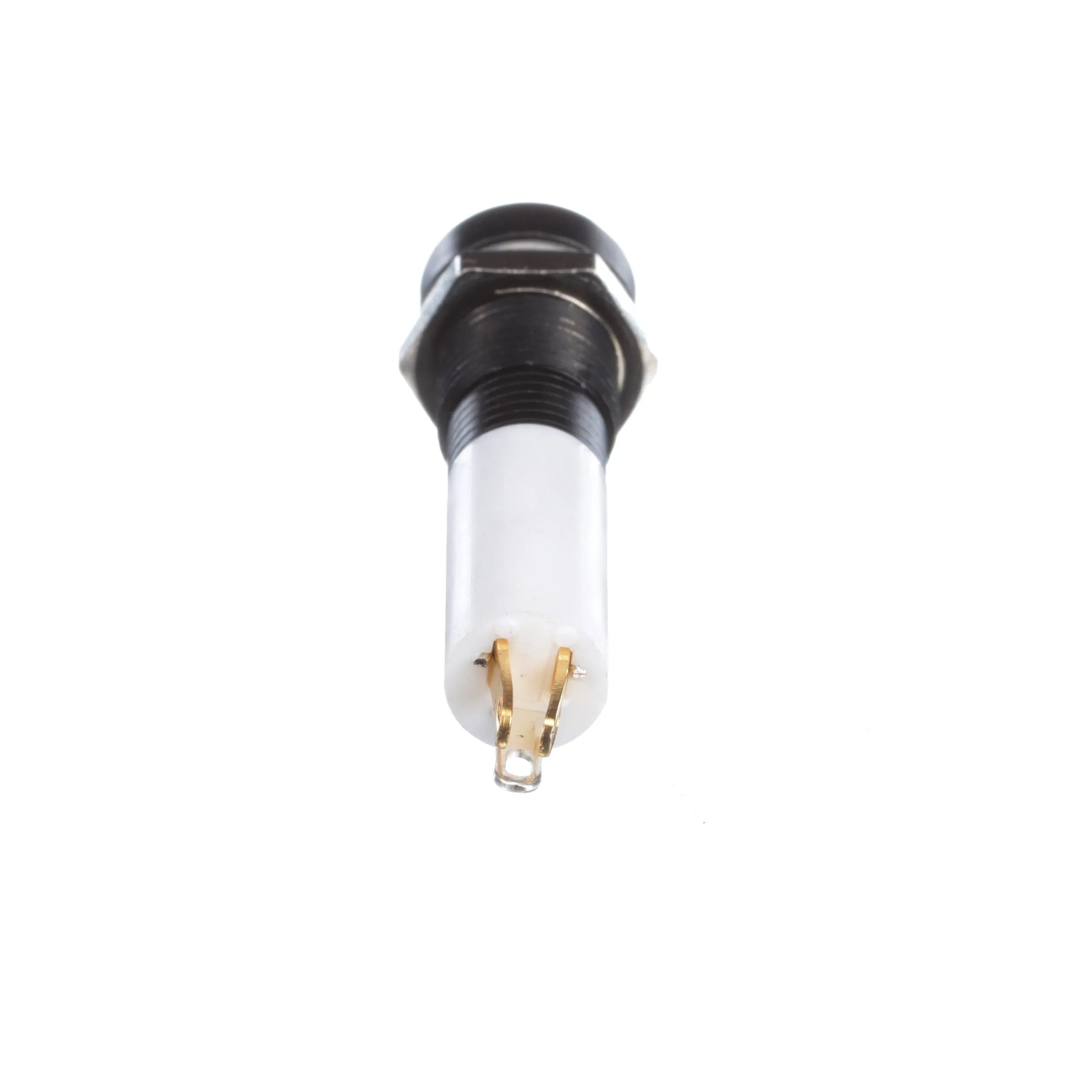

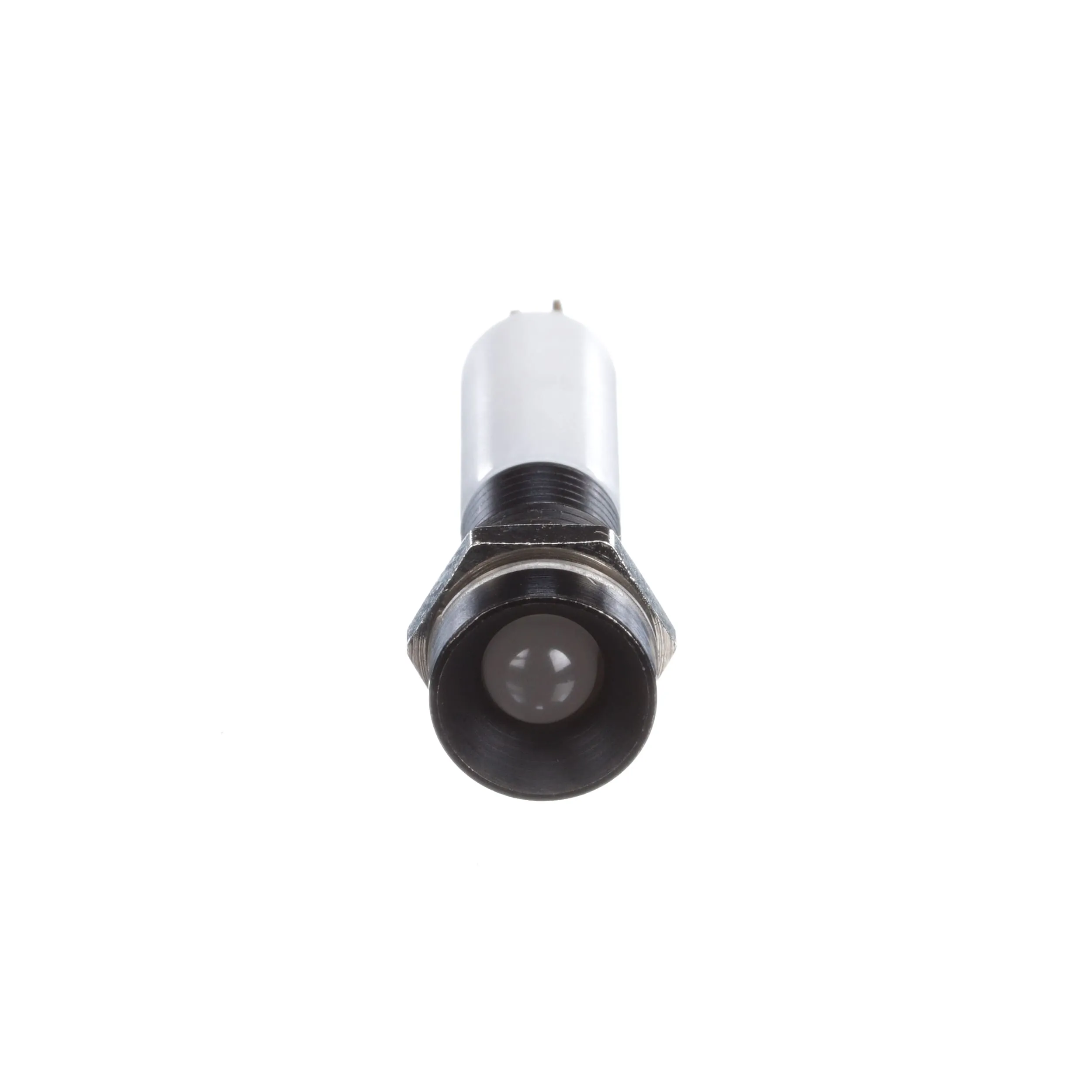

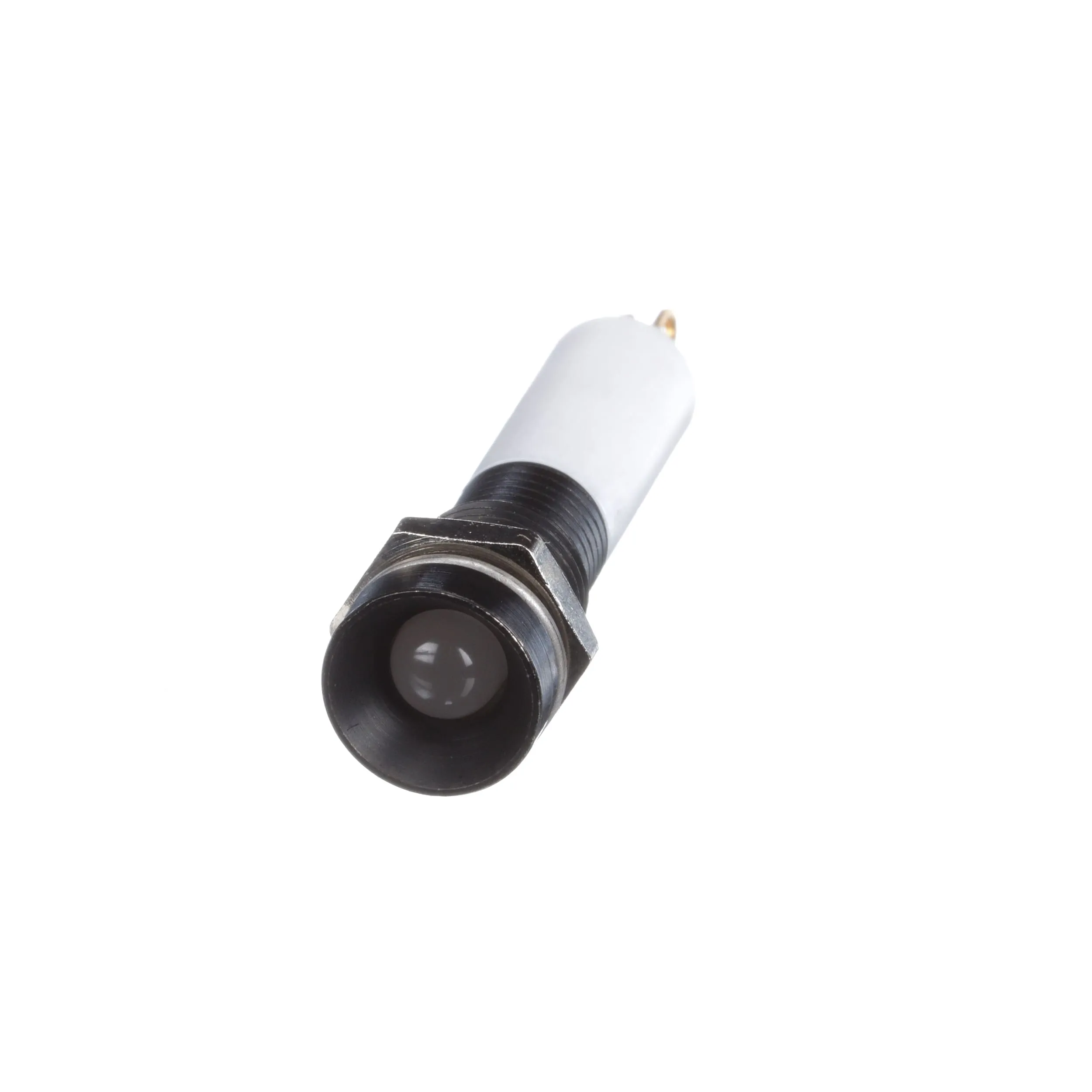

LED Indicator, 12 & 24Vdc, Black Chrome Bezel
Brought to you under the trusted RS Brand, these LED indicators have diffused epoxy lenses and a chrome bezel. The body features convenient solder lug termination for a quick and easy connection. RS Brand LED indicators give a high level of brightness and a long life at low energy consumption, making them ideal for a variety of equipment applications.
Supplied With:
fixing nut and washer
