Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | Q8R1CZZRYG24 |
| Color | Red, Yellow, Green |
| Current Rating | 20 mA |
| Lamp Size | 5 mm |
| Lamp Type | LED |
| Length | 1.368" (34.75mm) |
| Life | 100000 hrs. |
| Mounting Hole Size | 0.315 in. |
| Mounting Type | Threaded |
| Shop By | Factory Choice |
| Standards | UL |
| Supply Voltage | 24 VDC |
| Temperature Rating | -40 to 85 C |
| Termination | Solder |
| Type | General Purpose |
| UPC Code | 5056070911390 |
| Warranty | 3 Year Warranty |
Overview

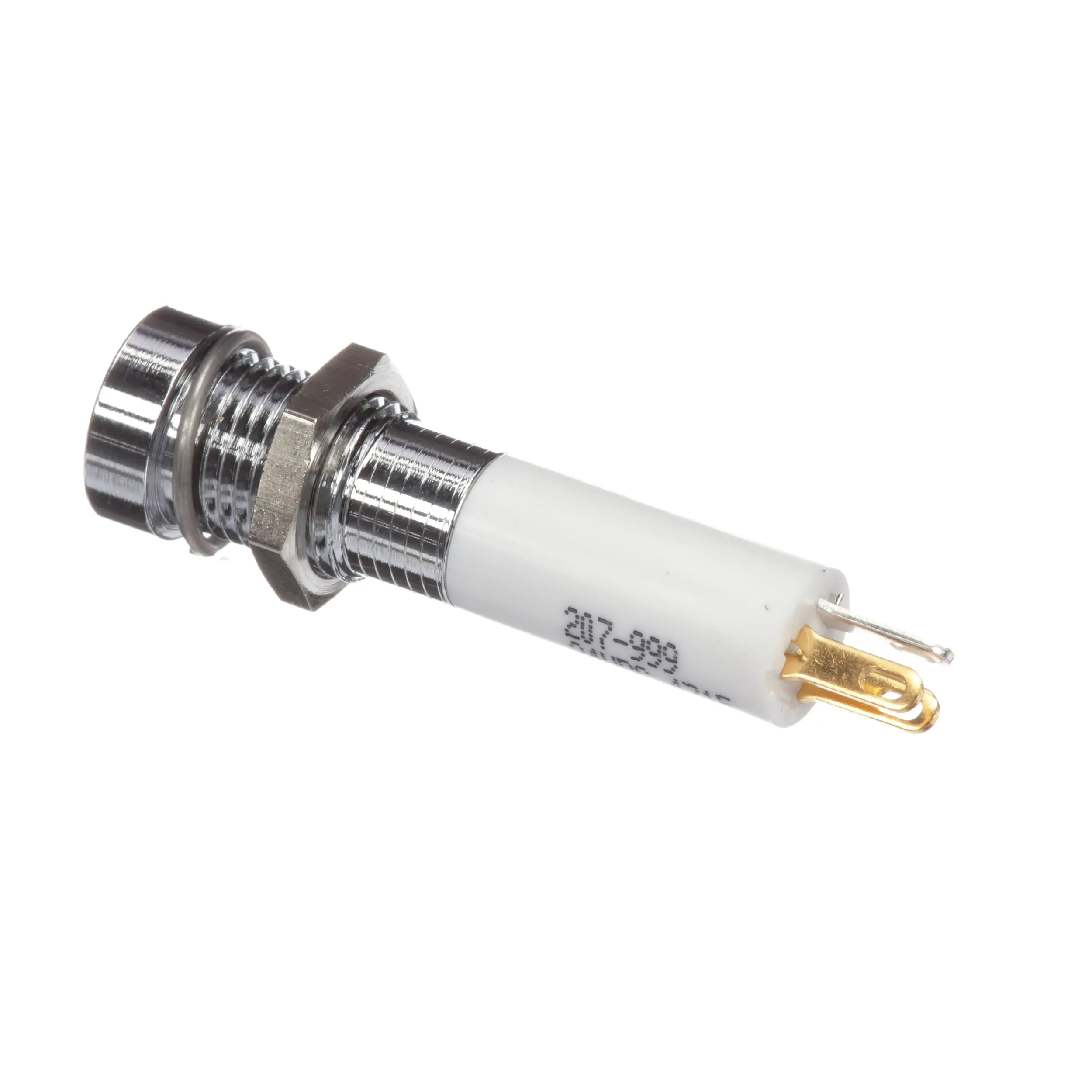

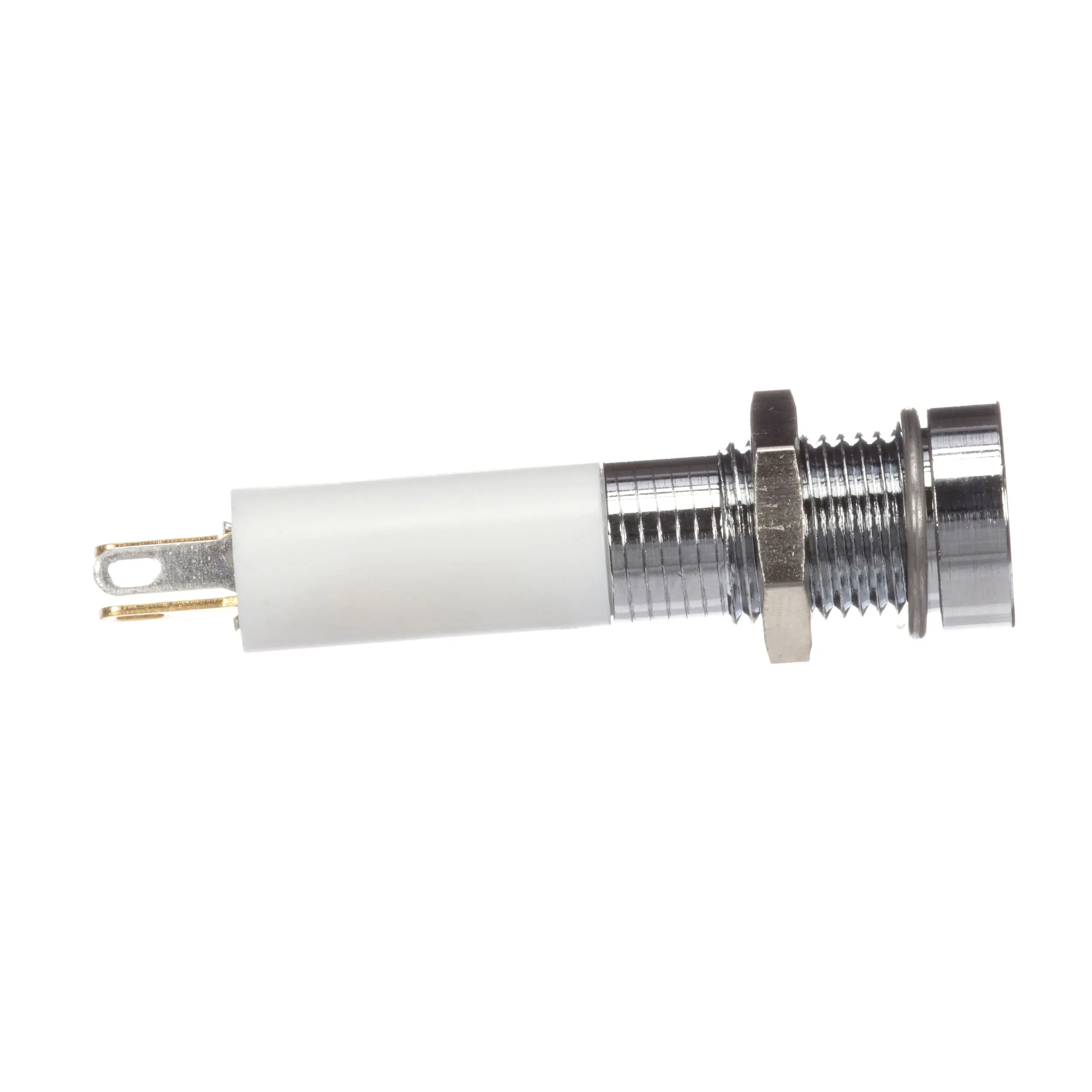

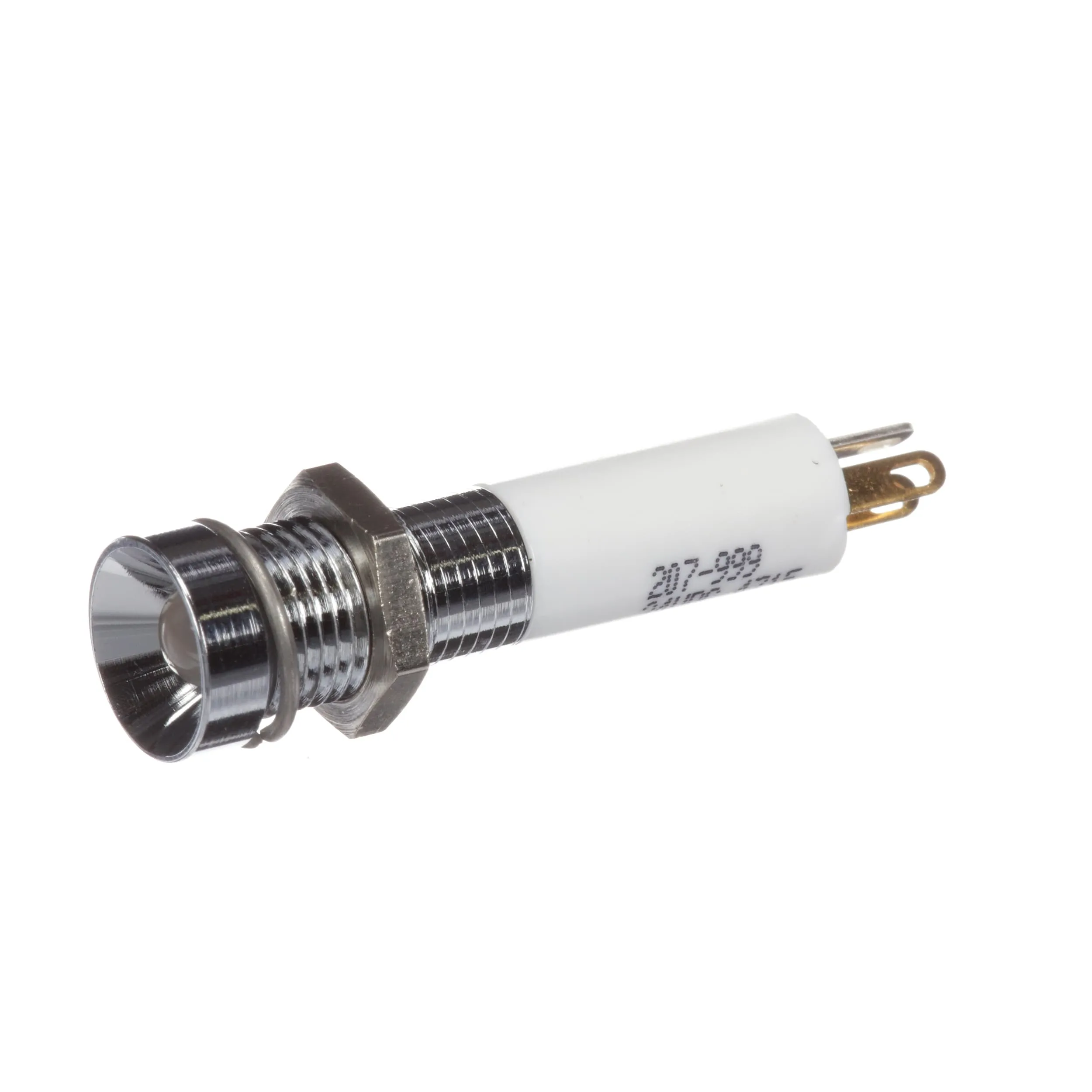

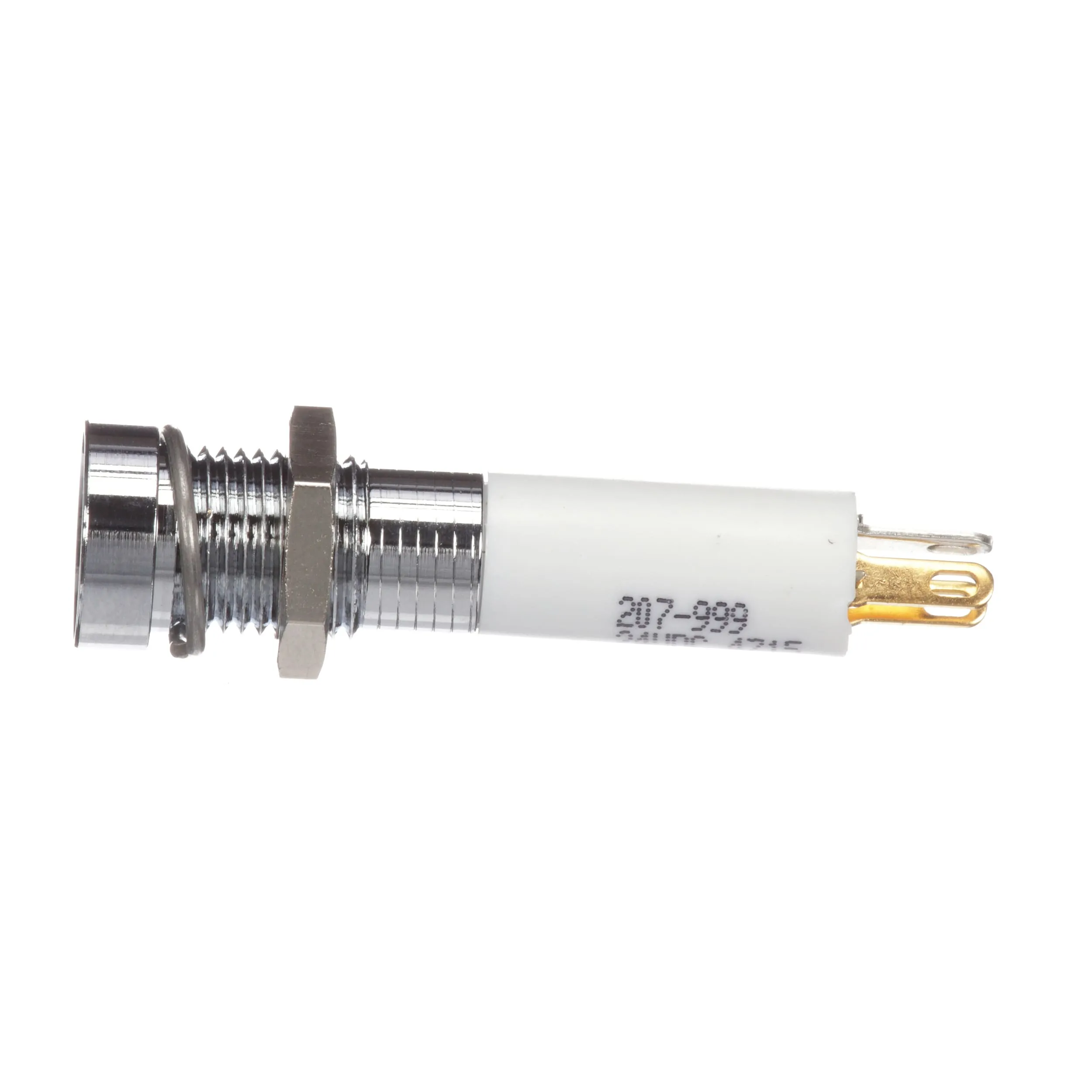

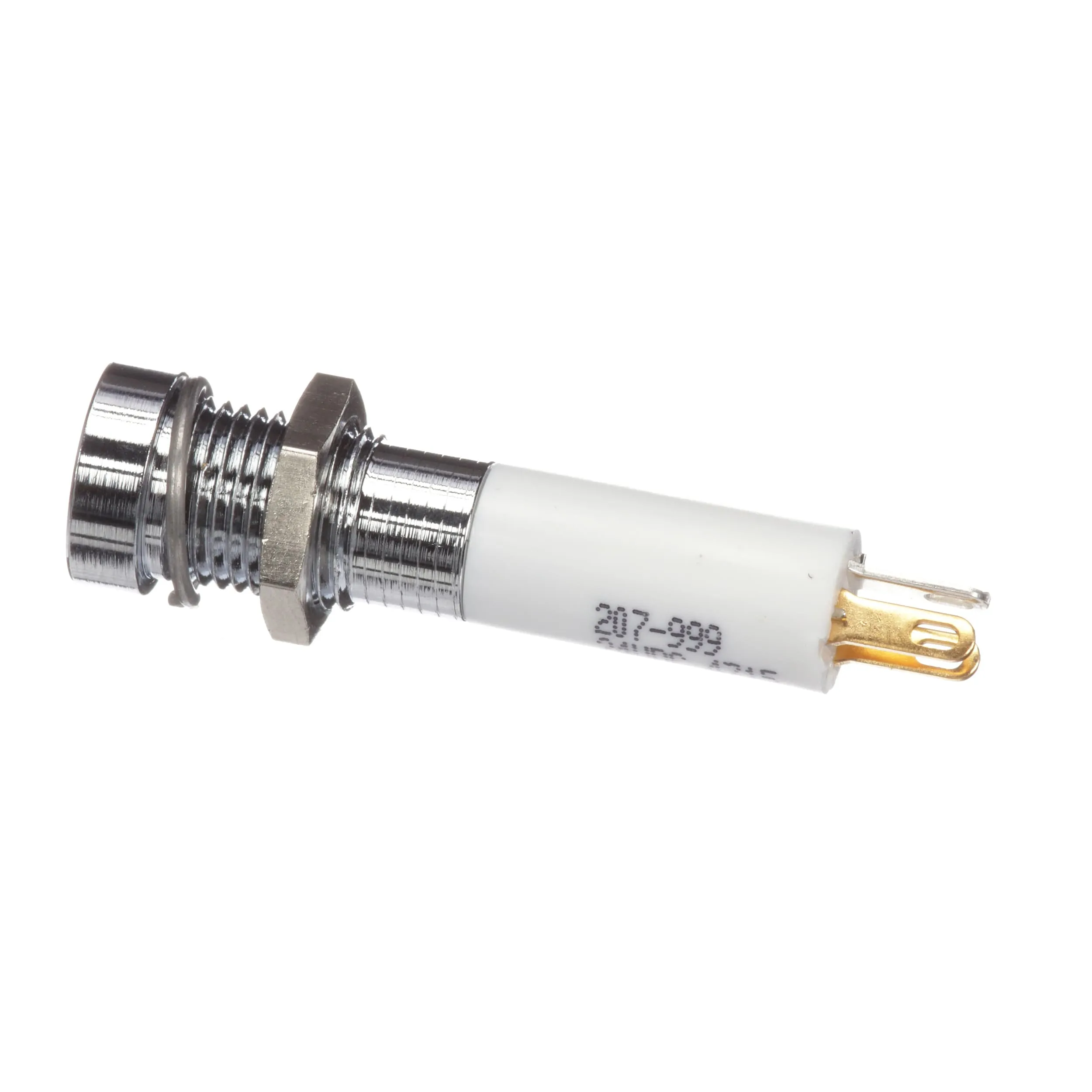

LED Indicators, 8mm Mount, 12 & 24Vdc, Bright Chrome Bezel
5mm colored diffused epoxy lens
Mounting hole size: 8mm
Length: 37mm
Life Expectancy: 100000 Hours
Operating Temperature range: -25 to 75C
Supplied With:
fixing nut and washer
