Metroman Display

Features

• MeteoMan can be connected to an NMEA Clipper Wind system where it will get wind speed/direction data via the Clipper wind output.
• NMEA Wind Sensor supplied with mounting brackets and 20 metres of two core screened cable.
• NMEA 0183 sentences: Wind speed/direction MWV Temperature XDR

For a yachtsman planning a voyage the ability to predict the weather is essential.
The rate of change of barometric pressure and history of wind speed can be an invaluable indicator of imminent conditions.

Many sailors rely on low cost domestic barometers which are inaccurate have low resolution and very poor history. Several quality paper recording instruments exist but are delicate fiddly to use and rely on paper which can jam when damp. The MeteoMan overcomes all these problems. It provides an accurate high resolution barograph recording in excess of five days data on barometric pressure and wind speed. It is easy to use reliable rugged and draws very little power from the boat’s battery.
The Meteoman is available with an optional NMEA Wind sensor which provides wind direction wind speed and external temperature. The Meteoman provides reliable meteorological information for the yachtsman. The main display shows the wind speed and direction the ambient temperature and the barometric pressure.
To assist in predicting future trends the unit also displays a precision barograph and an anemograph showing barometric pressure and wind speed for the previous five days.

In addition to the meteorological functions the unit includes a marine chronometer a stop watch a race countdown timer display of internal temperature and battery voltage.

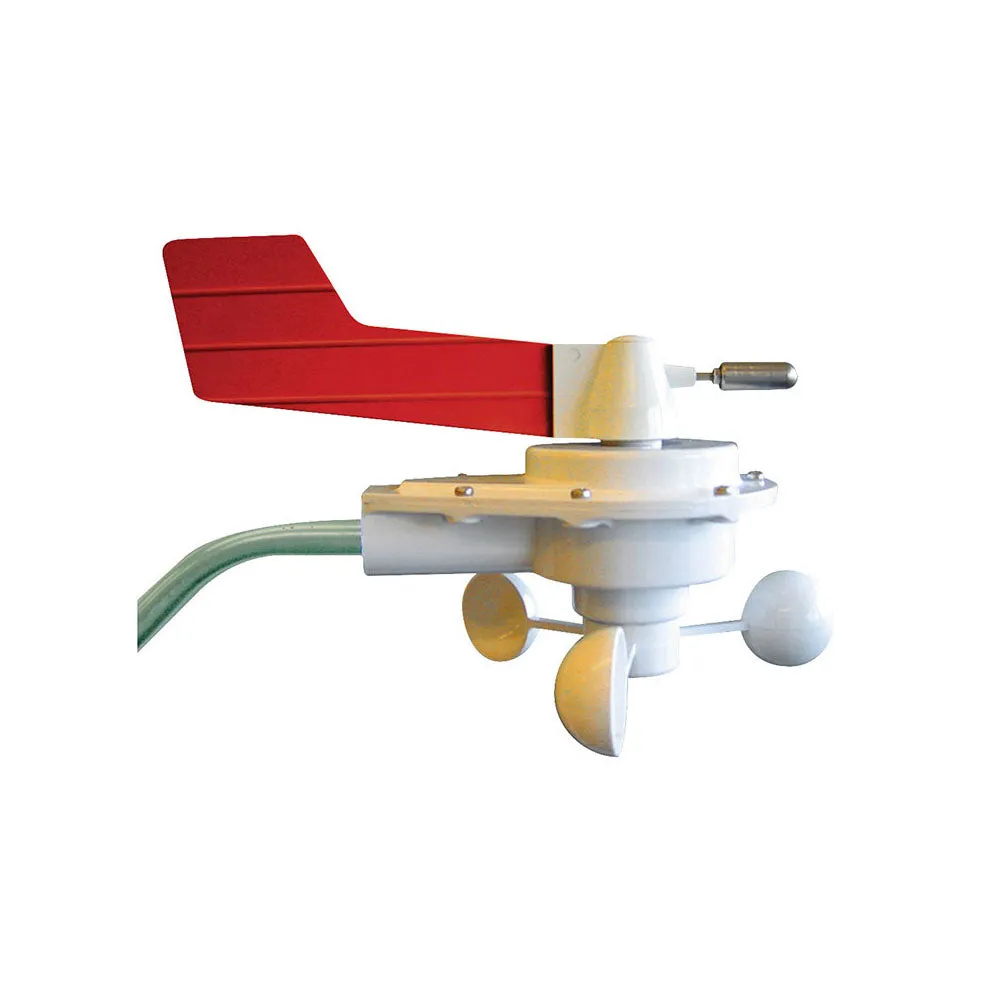

Masthead Unit

Features

• Wireless wind speed and direction data to any compatible NMEA display
• Easy installation with mast in place – no wires to run down
• Simple masthead alignment through base unit
• Light mast unit weight – 190 grams

The wireless masthead transmitter outputs NMEA 0183 wind speed and direction data via its paired receiver box. It is powered by an internal battery which is charged from ambient light using a small solar panel. A few dull days will not affect performance. When fully charged it is capable of two thousand hours of full operation in total darkness. The masthead transmitter sends data wirelessly to the base unit which is powered by the vessel’s 12 Volt supply the base unit receives wind speed and direction data from the masthead transmitter and sends it to a Clipper Wind display or any other compatible NMEA display unit.
