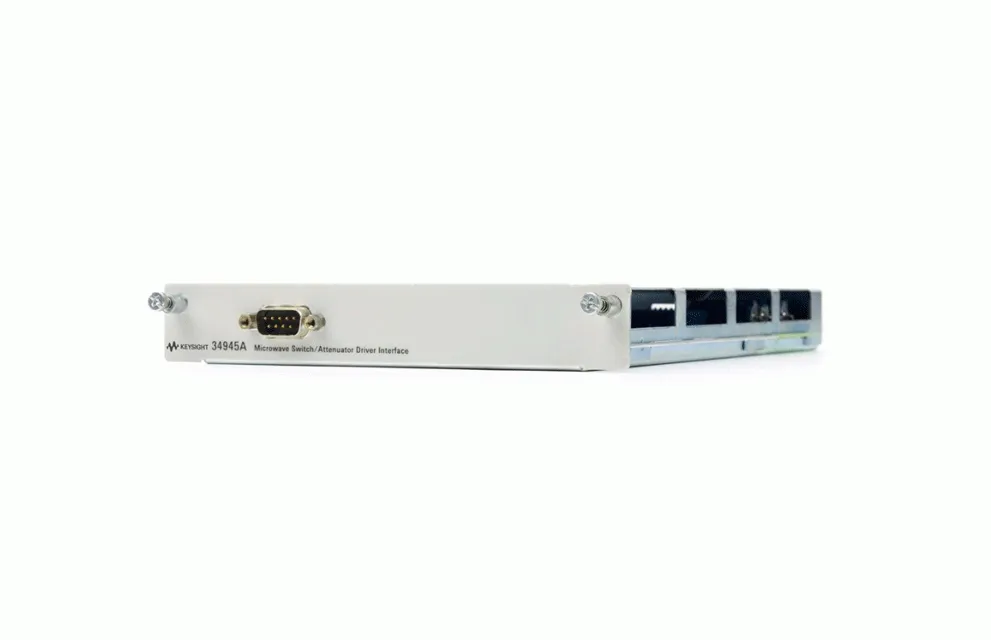

The 34945A switch/attenuator driver module for the 34980A Multifunction Switch/Measure Unit allows you to control switches and attenuators external to the 34980A Mainframe. This module provides power and control signals for many of the most popular microwave switches and attenuators. Distribution boards offer ease of wiring to the external switches. This module allows you to control switches attenuators, and other devices external to the 34980A. The 34945A provides the power and control signals for many of the most popular microwave switches and attenuators. The 34945A also has sensing capabilities that allows read back of the actual position of the switch or attenuator. Drive signals for LED indicators are also provided to give a visual indication of the switch position.

Features:

• Control of most popular microwave switches and attenuators
• Expandable with 34945EXT Remote Module
• Distribution boards for ease of wiring
• Switch readback capabilities
• External power option for simultaneous switching
