Features

• Dual differential inputs for pressure and temperature
• Displays 5 types of pressure units
• For use with R22 and R410A refrigerants
• Standard 1/4 NPT male flare fittings
• Large backlit LCD displays P1, P2, P1-P2, T1, T2, T1-T2, Ambient Temperature, plus Min/Max/Avg
• Dual Type K inputs with Electronic Offset adjustment to compensate for thermocouple differences
• Large multi-line backlit LCD display
• Data Hold plus Auto power off
• Complete with two heavy duty pressure hoses, protective rubber holster, two Type K temperature clamp probes, two general purpose Type K bead wire temperature probes, Universal AC adaptor with plugs (US, EU, UK, AUS), 9V battery, and hard case

Specifications

• psi: -14 to 500psi
• bar: -0.96 to 34.47bar
• kPa: -96 to 3447kPa
• inHg: -28 to 999.9inHg
• cmHg: -72 to 2585cmHg
• Temperature (Type K): -76°F to 999.9°F
• Temperature (Ambient - NTC): 32.0°F to 122.0°F
• Maximum Overload Pressure: 800psi
• Dimensions: 8.3 x 3.1 x 2" (212 x 78 x 51mm)
• Weight: 11.9oz (338g)

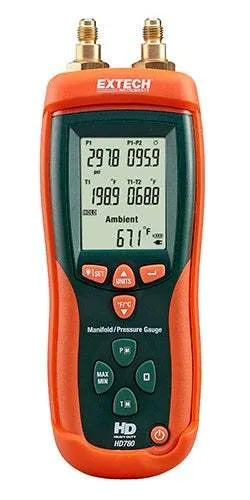

Extech’s Heavy duty Digital Manifold/Pressure Gauge simultaneously measures suction line or liquid line pressure and line temperature to calculate and display superheat and sub cooling for A/C units. It also has dual inputs measuring differential pressure (P1-P2) and Type K temperature (T1-T2). For use with R22 and R410A refrigerants. Included are heavy duty connection hoses, Type K Temperature Clamp probe, and bead wire Temperature probe.
