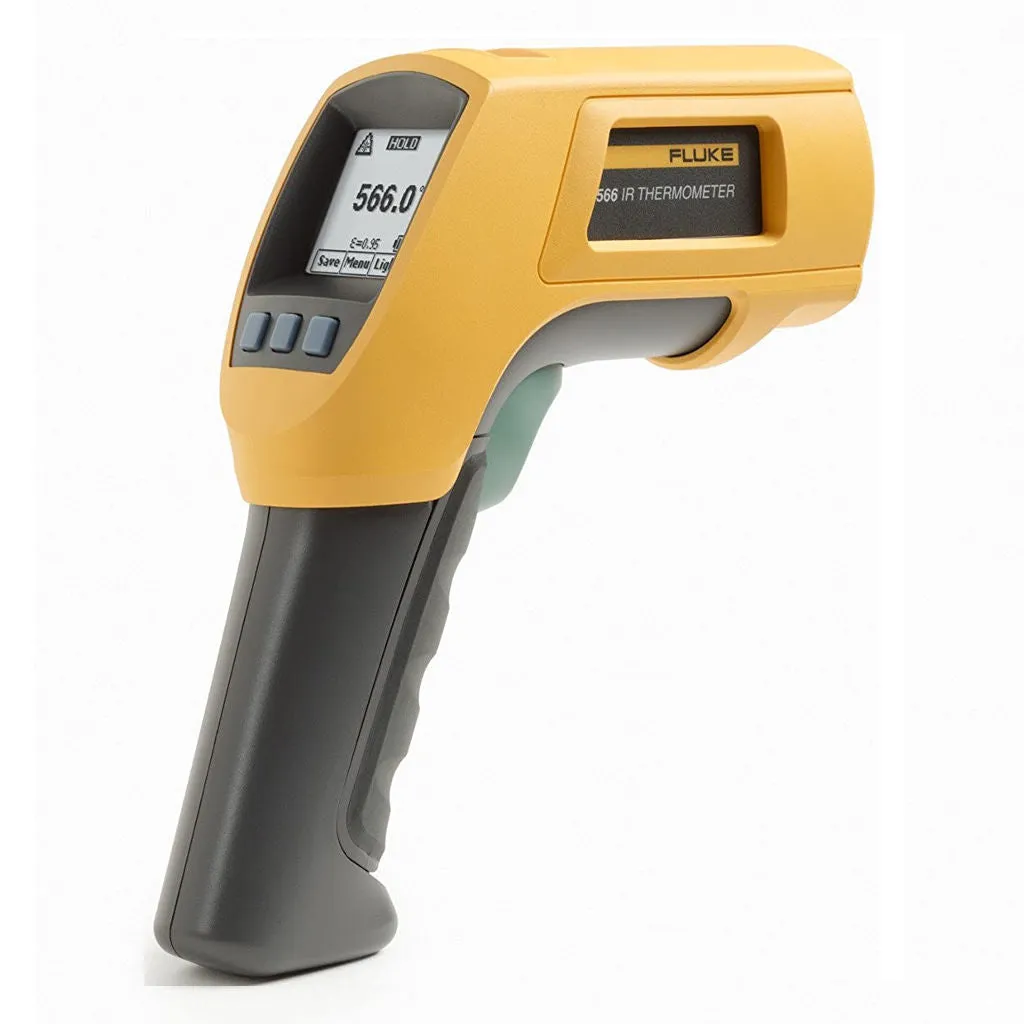

Product Description
-
Contact and non-contact IR thermometer for measuring up close or at a distance, without a ladder
-
Measures temperature from -40°C to 550° C (-40°F to 1022°F)
-
Works with all standard mini-connector type K thermocouples
-
Provides single-point laser sighting
-
Allows easy emissivity adjustment for measuring pipes and other shiny surfaces more accurately
-
Features fabric hook-and-loop fastener pipe probe for superheat, sub-cooling, and other contact and ambient measurements
Product Specification
|
Brand |
Fluke |
|
Product Type |
Infrared Thermometer |
|
Product Model |
561 |
|
Temperature |
-40 to 550°C (-40 to 1022°F) |
|
Display Resolution |
0.1°C (0.1°F) of Reading |
|
D:S (Distance To Spot Size) |
12:1 |
|
Easy Emissivity Selector |
Adjustable With Three Settings |
|
Low (0.3), Medium (0.7). high (0.95) |
|
|
Display Accuracy [Assumes Ambient Operating Temperature Of 23°C (73°F) to 25°C (77°F)] |
±1.0% of Reading ±1% of Reading or ±1°C (±2°F), Whichever Is Greater Below 0°C / 32°F, ±1°C (±2°F) ±0.1°/1° |
|
Response Time |
500 mSec (95% of Reading) |
|
Repeatability |
±0.5% of Reading or ±1°C (±2°F), Whichever Is Greater |
|
Spectral Response |
8 µm to 14 µm |
|
Laser Sighting |
Single Point Laser |
|
Laser Shutoff |
Laser Turns Off Above Ambient Temperature Of 40°C (104°F) |
|
Laser Power |
Class 2(II) Operation; Output < 1 mW, Wavelength 630-670 nm |
|
Relative Humidity |
10% to 90% RH Non-Condensing, at < 30°C (86°F) |
|
Power, Battery Life |
2 AA Batteries (alkaline or NiCD) |
|
Battery Life |
12 Hours |
|
Display Hold |
7 Seconds |
|
Backlit Display |
Yes, LCD With Dual Temperatures (Current and MAX/MIN/DIF/KTC), Low Battery, F/C Indicator, And Scan/Hold Options |
|
Operating Temperature |
0°C to 50°C (32°F to 120°F) |
|
Storage Temperature |
-20°C to 65°C (-25°F to 150°F) |
|
Max, Min, Dif Temperatures |
Yes |
|
Thermocouple Type K Mini Adapter Input |
Yes, Compatible With Industry Standard K type Probes With Mini-Connector Displays To The Thermometer Temperature Range |
|
Thermocouple Type K Fabric Hook-And-Loop Fastener Pipe Probe |
Yes, With a Temperature Range of 0°C to 100°C (32°F to 212°F) and accuracy of ±2.2°C (±4°F) |
|
HVAC Measurement Guide |
Yes |
|
Warranty |
2 Years |
