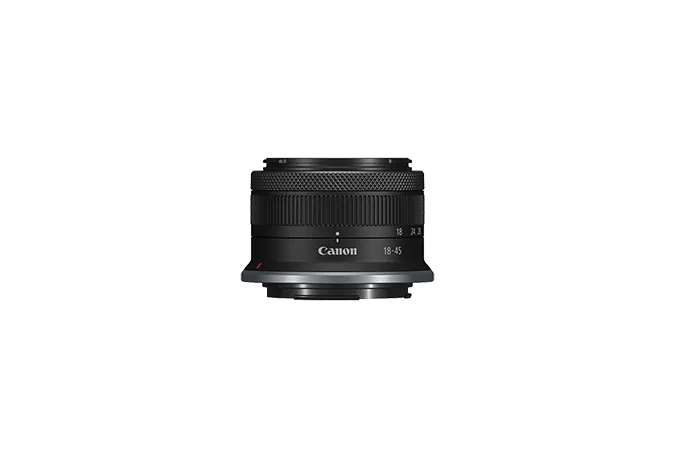

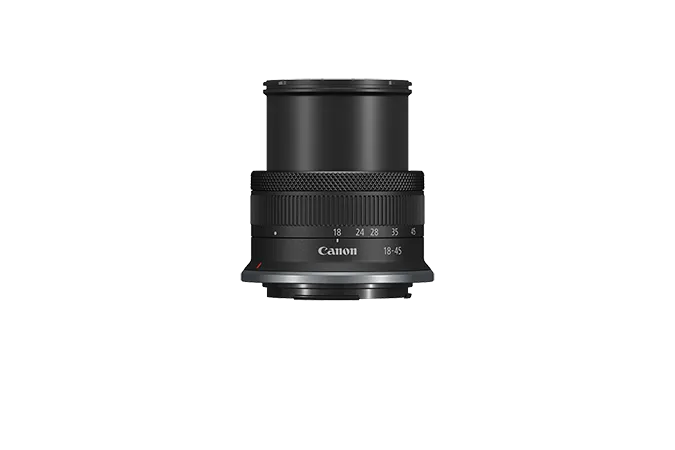

Canon RF-S 18-45mm f/4.5-6.3 IS STM

Canon SKU: 4858C002 | Helix SKU: CA4858C002

Overview

RF-S 18-45mm F4.5-6.3 IS STM

As part of our new RF-S lens line, the RF-S18-45mm F4.5-6.3 IS STM gives you the flexibility you desire without taking up your whole camera bag. This lens was designed with smaller APS-C sensors in mind, and when attached to a full frame EOS R camera, automatically enables the 1.6x crop mode.  It offers 100% x 100% Dual Pixel CMOS AF coverage for APS-C sensors, and 80% x 80% Dual Pixel CMOS AF coverage for Full Frame sensors (in crop mode). The small size of the RF-S18-45mm F4.5-6.3 IS STM and clever lens retraction mechanism lets it fit just about anywhere, making it a great lens to bring with you on a walk or wherever the day takes you. The lead screw-type stepping motor (STM) helps ensure smooth autofocus and quiet operation, letting you capture videos with great audio and minimal background noise so you won't distract your subject in a quiet photo environment. Optical Image Stabilization provides up to 4 stops of correction, and up to 6 stops with Coordinated IS.  This advanced image stabilization can result in sharper photos with minimal blur, even in low light situations. When you add all of this together, you get a wonderful, lightweight, and versatile lens that is designed to fit into your life.

Specifications

Specifications

Lens

Focal Length18-45mm
Maximum Aperturef/4.5
Minimum Aperturef/32
Lens Mount TypeRF Mount
Compatible CamerasCanon EOS R-series, APS-C and full-frame (automatic APS-C sensor cropping if used on full-frame EOS R-series cameras)
Minimum Focusing Distance0.20 m (at 18 mm)
Maximum Magnification0.16x (at 45 mm)
Field of View, at Minimum Focus DistanceApprox. 153 x 102 mm (at 18 mm) to approx. 137 x 92 mm (at 45 mm)
Angle of View (Diagonal)Approx. 74° 20' - 33° 40'



Optical Design

Lens Construction7 elements in 7 Groups
Special Elements(Two) Aspherical elements
Lens CoatingCanon SSC (Super Spectra Coating)
Filter Size Diameterο49 mm
Aperture Blades7
Image Stabilization4 stops correction with In-lens Optical Image Stabilization (6 stops correction with EOS R5 in-body coordinated Image stabilization)



Focusing

Focusing Drive SystemCanon STM (Leadscrew type STM)
Full-Time Manual FocusingYes
(Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)
Dual Pixel CMOS AF Coverage (Horizontal x Vertical)
  • EOS R - Approx. 80% x 80%
  • EOS R5 - Approx. 80% x 80%
  • EOS R7/R10 - Approx. 100% x 100%



Exterior Design

Control RingDual-function Manual focus ring / Control Ring (selected using camera menu)
Manual Focus RingElectronic ring system
  • Full-time Manual focus possible
  • No physical limit to ring rotational angle
AF/MF SwitchNone - focus mode selected in camera menu
MF/Control Ring SwitchNone - Must be selected in camera menu
Distance ScaleNone
Distance scale available in EVF or Live View LCD screen of compatible EOS R-series cameras
Distance Limiter SwitchNone
Dust/Weather Resistant ConstructionNone



Dimensions & Weight

Maximum Outer Diameter x LengthApprox. ο2.7 in. x 1.7 in. (ο68.9mm x 44.3mm)
WeightApprox. 4.6 oz. / 0.3 lb. / 130g



Accessories

Lens HoodCanon EW-53
  • Bayonet-mount, petal-shaped hood
  • Optional accessory, sold separately
Lens Cap(Front) Canon E-49 (center pinch-type) (Bundled)
Dust CapCanon Lens Dust Cap RF (Bundled)
Lens CaseCanon Lens Case LP814
  • Optional accessory, sold separately
Extension TubesNone (No Canon RF mount extension tubes)
Close-Up Lenses 250D/500DNone (No ο49mm size available)
Canon RF Extender 1.4x/2xNot Compatible
Canon Gelatin Filter Holder III/IVNot Compatible



*Note: Prices and specifications subject to change without notice.

Item Includes

RF-S 18-45mm F4.5-6.3 IS STM

  • RF-S18-45mm F4.5-6.3 IS STM Lens
  • Lens Cap E-49
  • Lens Dust Cap RF
